Why Your Undercounter Cooler Is Tripping the Breaker in Waco, TX

April 23, 2026 — Waco, TX A breaker that keeps tripping is almost never a nuisance — it’s a warning. When an undercounter cooler in West Waco started knocking out its GFI outlet on every start-up, our technician traced the problem to a power cord that had rubbed against the adjacent cabinetry until the insulation wore through. Here’s what happened, why it matters, and how to prevent the same failure in your own equipment.

What Was Actually Wrong

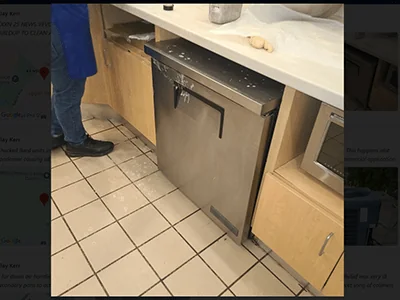

The unit — a True single-door undercounter cooler — was tripping its breaker intermittently. Every time the compressor tried to start, the GFI outlet detected a fault and cut power. The compressor itself was fine. The electrical supply was fine. The problem was hiding between the back of the cooler and the cabinet it slid into. Over time, vibration from the compressor had shifted the unit just enough that the power cord rubbed against the edge of the adjacent cabinetry. The outer jacket wore through. The inner insulation followed. Once bare copper made contact with the metal cabinet frame, every start-up produced a direct short straight to ground — and the GFI did exactly what it was designed to do.

Why Cord Damage Happens More Often Than You’d Think

• Tight installs. Undercounter units are built to slide into a cutout. There’s rarely much clearance behind them for the cord to route safely.
• Vibration. Every compressor cycle moves the unit microscopically. Multiply that by thousands of cycles a year and even a soft contact point becomes abrasive.
• Sharp cabinet edges. Many cabinet cutouts leave unfinished wood edges or metal corners right where the cord routes.
• Hidden from view. Nobody sees the back of the cooler until there’s a problem. Damage progresses for months without anyone noticing.

Warning Signs Before the Breaker Trips

• GFI outlet tripping inconsistently, especially on start-up
• A faint ozone or “hot plastic” smell near the unit
• Scorch marks or discoloration on the plug or outlet
• The cooler runs fine for hours, then suddenly shuts off

Any of these symptoms is a reason to pull the unit out and inspect the cord before the problem escalates to a fire.

How We Repaired It

Our technician pulled the cooler out, located the wear point, and cut openings in the upper section of the adjacent cabinets to reroute the power cord up and away from the contact point. That eliminated the direct path that had been causing the short. After repairing the damaged section of the cord, we reset the GFI outlet and verified the cooler was starting, running, and holding temperature with no faults. The fix itself was straightforward once we found the cause — but finding the cause required pulling the unit and inspecting every inch of the cord run. That’s why “it keeps tripping the breaker” deserves a real diagnosis, not just another reset.

Preventing Cord Damage in Undercounter Installs

• Route the power cord up and out the back of the cabinet rather than pinching it behind the unit.
• Add a grommet or cord bushing anywhere the cord passes through wood or metal.
• Leave at least an inch of clearance between the unit and the cabinet wall when possible.
• Schedule preventative maintenance so a qualified technician inspects cord condition and compressor vibration annually.
